SKU: 53041, 53042, 53065

Large Pondless Waterfall Kit (Boxed)

$3,550.60$3,649.60

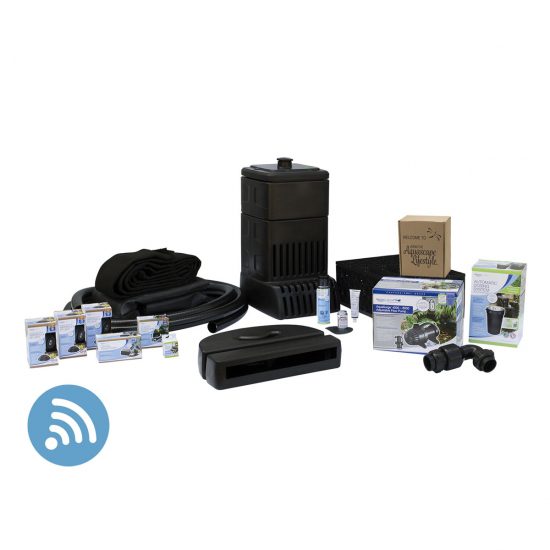

  • Builds a 26′ waterfall or stream
  • Your choice of an AquaSurge® 4000-8000, 5-PL 5000, or SLD 5000-9000 pond pump
  • Waterfall Spillway 22″
  • Pondless® Waterfall Vault
  • (5) AquaBlox® Large Water Storage Modules
  • (3) 1-Watt Waterfall Lights
  • 60-Watt Lighting Transformer with Photocell
  • 3-Way Quick-Connect Splitter
  • 25′ Quick-Connect Extension Cable
  • Automatic Dosing System for Fountains with 32 fl. oz. water treatment
  • Flexible PVC Pipe – 2″ x 50′
  • 45 mil EPDM liner – 10′ x 30′ (stream) and 10’x 15′ (reservoir) with 180 sq. ft. of protective underlayment
  • Welcome Kit
  • Installation Kit containing silicone, Pond and Waterfall Foam Sealant, PVC cement, and more

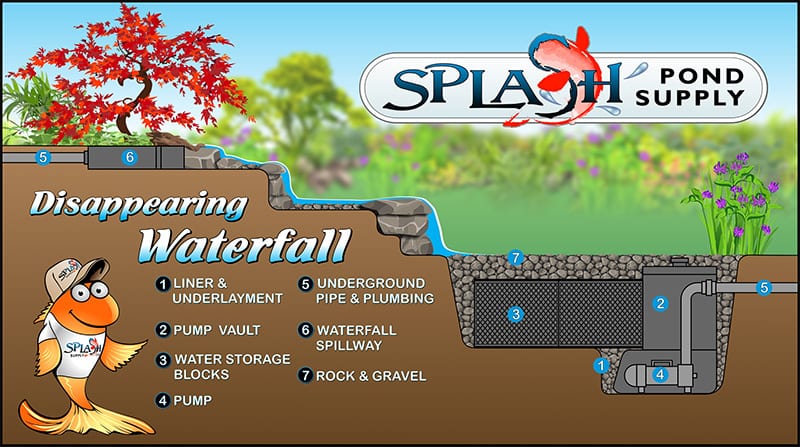

The Aquascape Large Pondless® Waterfall Kit 26′ Stream comes complete with everything you need to build a beautiful, one-of-a-kind, recirculating 26′ waterfall or stream in any space, eliminating the guesswork and calculations when purchasing individual components.

The complete kit includes a 22″ wide waterfall spillway diffuser to optimize water flow and a pump vault for quick and easy pump access. Your choice of either an Aquascape Smart Control App capable AquaSurge® Adjustable Flow pond pump, PL Series pump or our SLD pond pump. An LED lighting package is included to bring your pond to life at night. An Automatic Dosing System with Prevent for Fountains water treatment is included to automatically add water treatments to the waterfall, keeping water conditions clean and clear.

*Note: This kit does NOT include rock or gravel. If you live near York, PA, check out our Splash-exclusive kits that include rock, gravel, on-site consultation and free local delivery.*

View Instruction Manual
View Owner’s Manual


Compare Boxed Pondless Waterfall Pond Kits

Live near York, PA? Check out our selection of Splash waterfall kits with rock, free local delivery & on-site consultation

Small Basic Waterfall Kit Small Upgraded Waterfall Kit Medium Waterfall Kits Large Waterfall Kits Medium Deluxe Waterfall Kit Large Deluxe Waterfall Kit
Finished Stream Length (Approximate) 3' 6' 16' 26' 16' 26'
Model Number 83001 53038 53039 | 53040 | 53064 53041 | 53042 | 53065 53068 53069
Waterfall Spillway Included Included Included Included Included Included
Pump Vault Pondless® Waterfall Vault Pondless® Waterfall Vault Pondless® Waterfall Vault Pondless® Waterfall Vault Pondless® Waterfall Vault Pondless® Waterfall Vault
AquaBlox® (2) Small (3) Small (5) Small (5) Large (5) Small (5) Large
Pump EcoWave 2000 AquaSurge 2000-4000 AquaSurge 2000-4000 (Kit #53039) | 3-PL 3000 (Kit #53040) | SLD 4000-7000 (Kit #53064) AquaSurge 4000-8000 (Kit #53041) | 5-PL 5000 (Kit #53042) | SLD 5000-9000 (Kit #53065) AquaSurge 2000-4000 AquaSurge 4000-8000
Pipe Kink-Free 1.5 in x 25 ft Flexible PVC 1.5 in x 25 ft Flexible PVC 2 in x 25 ft Flexible PVC 2 in x 50 ft Flexible PVC 2 in x 25 ft Flexible PVC 2 in x 50 ft
Liner Material 45 mil EPDM 45 mil EPDM 45 mil EPDM 45 mil EPDM 45 mil EPDM 45 mil EPDM
Liner Size for Reservoir 10 ft x 12 ft 10 ft x 10 ft 10 ft x 12 ft 10 ft x 15 ft 10 ft x 12 ft 10 ft x 15 ft
Liner Size for Stream - 8 ft x 10 ft 10 ft x 20 ft 10 ft x 30 ft 10 ft x 20 ft 10 ft x 30 ft
Underlayment 105 sq. ft 100 sq. ft 120 sq ft 180 sq ft 120 sq ft 180 sq ft
Lighting - - LED Lighting Package LED Lighting Package LED Color-Changing Lighting Package LED Color-Changing Lighting Package
Automatic Dosing System - Included Included Included Included Included
App/WiFi Connected - Included 53039 | 53064 53041 | 53065 Included Included
Installation Kit Included Included Included Included Included Included
View Product View Product View Product View Product View Product View Product

Weight 6064 oz
Dimensions 39 × 40 × 31 in
Pump

AquaSurge 4000-8000, 5-PL 5000, SLD 5000-9000
